Component Recognition program for recycled plastics
We test recycled plastic compounds with post-consumer or post-industrial content to UL 746D (Standard for Safety for Polymeric Materials - Fabricated Parts).
The rigorous testing involved in this process makes it possible to assign to a recycled plastic the same ratings as a virgin resin within the the same product category (QMFZ2). It hence allows a virgin resin to be substituted by a recycled plastic for end-use applications in compliance with UL 746C, the Standard for Polymeric Materials, Use in Electrical Equipment Evaluations - within the design limitations of the specific end-product standards.
UL certification process for recycled plastics
The certification process includes three parts: initial certification, quality assurance (QA) program, and follow-up inspection visits.
There are two paths for evaluating a recycled plastic, and each defines the number of batches that are needed to evaluate consistency in the recycled plastics stream. Customers are encouraged to contact UL to learn more about which path is required for their specific testing.
- Path 1: Recycled plastics with consistent identification
This path is typically for post-industrial regrinds that are traded between different companies and, as a result, traceability is compromised.

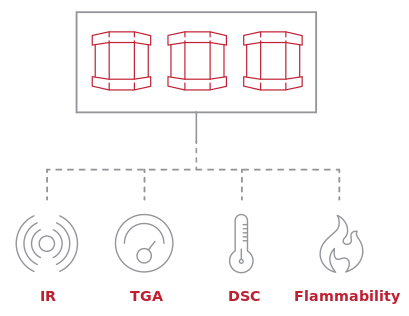

Three batches are required with the following properties tested:
- IR – Infrared Analysis
- TGA – Thermogravimetric Analysis
- DSC – Differential Scanning Calorimetry
- Flammability – The results of these tests are to be consistent per criteria in UL 746D
- One batch is required for additional short-term properties, i.e., HAI, HWI, CTI, etc.
- One batch is required for additional colors
- One batch is required to determine an Elevated Relative Thermal Index (RTI) through LTTA
- A generic RTI can be assigned based on a positive IR comparison to a generic plastic
- Path 2: Recycled plastics without consistent identification
This path is typically for post-consumer plastics that have been used in products that are considered waste. The plastic in these products is recovered and reprocessed to be reused again in products.

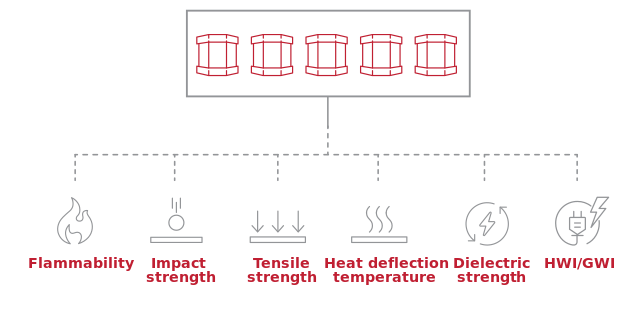

Five batches are required with the following properties tested:
• Impact strength
• Tensile strength
• Heat deflection temperature
• Dielectric strength
• Hot Wire Ignition (HWI) or Glow Wire Ignition (GWI)

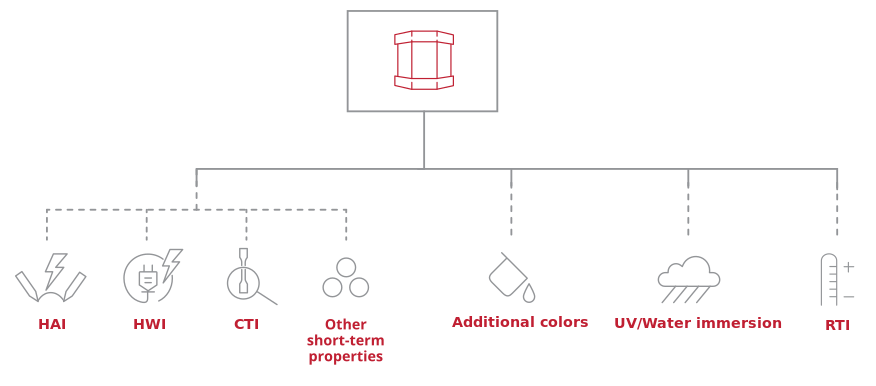

One batch is required for infrared analysis (IR)

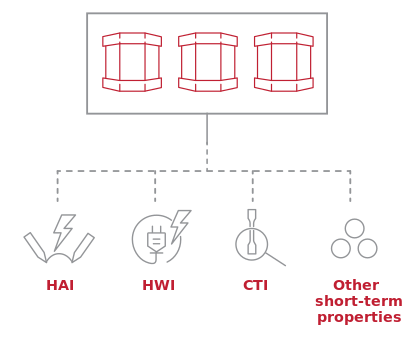

Three batches are required for additional short-term properties, i.e., HAI, HWI, CTI, etc.
One batch is required for additional colors.
One batch is required for an Outdoor investigation (UV/Water immersion)
One batch is required to determine an RTI through LTTA.
A generic RTI can be assigned based on a positive IR comparison to a generic plastic.
Quality assurance program for recycled plastics
Our quality assurance (QA) program involves establishing the traceability of plastic sources. Traceability is an important part of producing a high quality, safe, reliable recycled plastic, this program helps ensure that the manufacturer is maintaining good control of their many plastic sources.
In order to achieve UL Recognition for a component, a recycled plastic manufacturer must have a registered quality management system that is compliant with International Organization for Standardization (ISO) 9001 or an equivalent internationally recognized standard.
In the QA program, a number of tests can be conducted as indicated in UL 746D; however, the following tests are required based on the flammability rating as indicated below:
|UL 94 rating||QA test programs|
|HB||Impact plus one additional test from UL 746D, 10.4.4
|V-2, VTM-2 or better||Impact plus UL 94 flammability, or Impact plus two additional tests from UL 746D, 10.4.4|
These tests must be conducted on an ongoing basis as deemed required by the quality management system. During follow-up inspection visits, the field engineer will review records for compliance with these test methods.
Our Follow-Up Services verify continuing compliance with safety requirements through ongoing material assessments such as regular manufacturing visits and sample selection with testing as the material is being produced.
Regrind versus post-industrial recycle content
As defined by UL 746D, regrind specifically refers to reclaimed scrap from molding, such as sprues or runners that are reused in-house at a molding facility.
Regrind that fits this definition can be re-introduced into the molding hopper to comprise up to 25% where the rest of the 75% is comprised of the same virgin grade that was used to mold the parts where the regrind came from.
It is also possible for this type of regrind to be considered a source of recycled plastics even if it does not match the basic definition. In other words, regrind that is collected and packaged for shipment to a different molder becomes a source of post-industrial recycled plastics. This occurs because the traceability of the regrind is compromised when it leaves the molder, and an evaluation is necessary to verify this regrind, or post-industrial recycled plastic, is consistent when molded by a different molder.
Recycled content validation
Although UL’s Component Recognition of recycled plastics program will help ensure that the material tested meets UL’s stringent safety performance requirements, it does not validate for the type of recycled content used or the percentage used.
UL’s Environmental Claim Validation program (ECVP) for Recycled Content, does evaluate the amount of recycled content in your products including:
• Post-consumer recycled content
• Pre-consumer (post-industrial) recycled content
• Closed loop recycled content
• Total recycled content
